TPP-3X2RCM | Tele-Master

TPP-3X2RCM

contact us

DESCRIPTION

FEATURES

．

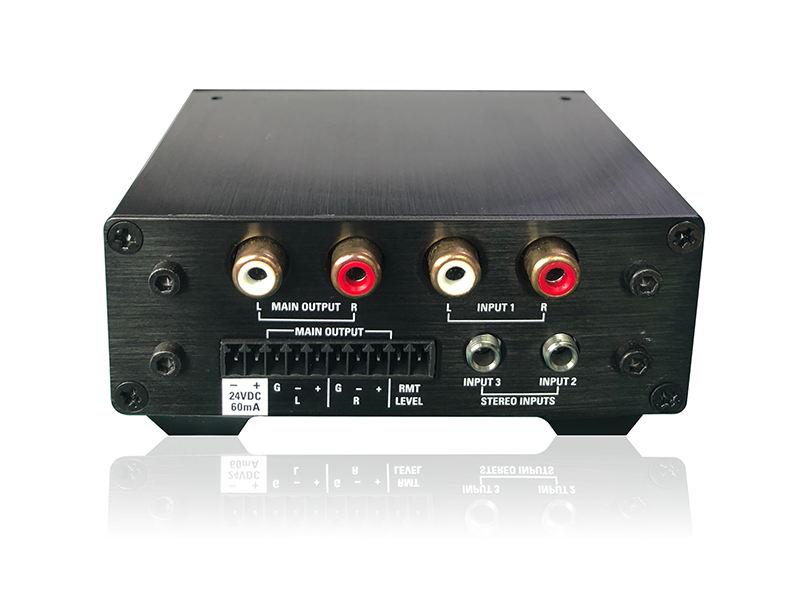

Three Stereo Unbalanced Line Inputs, One Set of RCA and Two 3.5mm
．
Balanced Line Outputs Left & Right
．
Unbalanced Line Outputs Left & Right
．

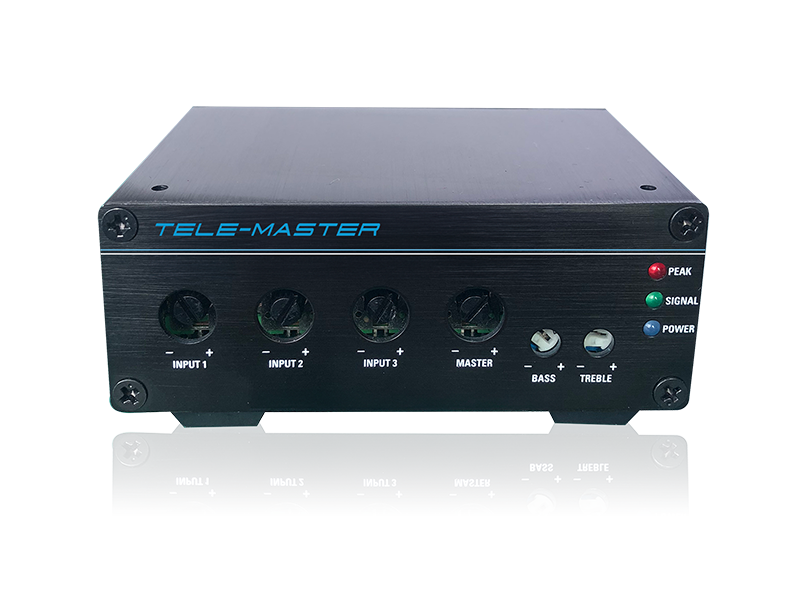

Base & Treble Controls ±6dB
．
Remote Master Level Control
．
High Gain Output for Driving Long Balanced Lines
．
Input Signal Indicator LEDs, Qty 3
．
Output Peak & Signal Indicator LEDs
．
Separate Ground Connections

SPECIFICATIONS

．
Unbalanced Line Input

300mV (-10dB)
．
Maximum Input Signal

1.5V (3dBV)
．
THD

.06% @ 1kHz
．
Signal To Noise Ratio

Line to Line: 85dBV
．
Balanced Output Impedance

300Ω
．
Unbalanced Output Impedance

150Ω
．
Power Consumption

60mA
．
Power Consumption

1.4W
．
Maximum Output Balanced/Unbalanced

5V (14dBV)
．
Frequency Response

20Hz - 20kHz (±1dB)
．
Frequency Response

20Hz - 20kHz (+/-1dB)
．
Voltage

24VDC, 60mA
．
Height

1.5" (39mm)
．
Width

4" (101mm)
．
Depth

2.75" (70mm)
．
Voltage Compatibility

24V
