WRD-5410M | Tele-Master

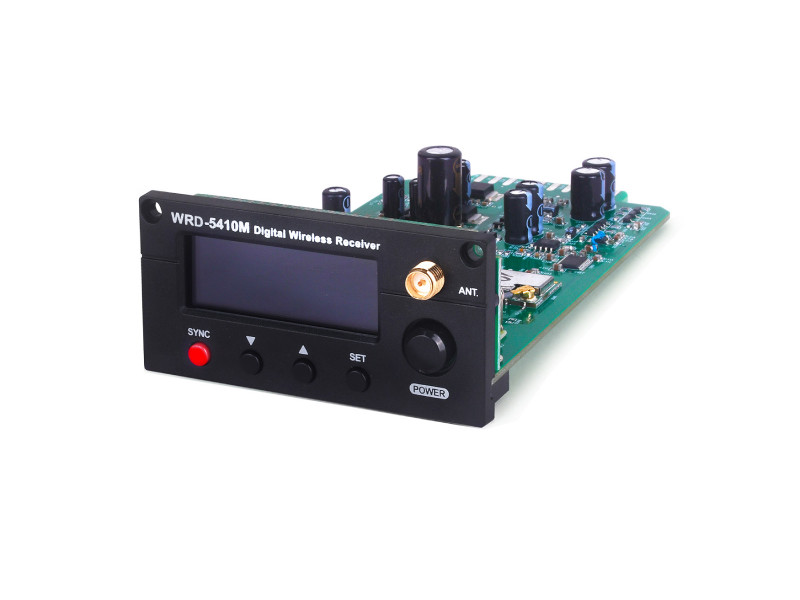

WRD-5410M

Three Redundancy Digital Receiver Module

contact us

FEATURES

．
Three Redundancy Digital Receiver Module

SPECIFICATIONS

．
Receiving mode

Three redundancy receiving system
．
Frequency range

2.4G ISM band
．
Auto freq. hopping

6 channels random access in 81 channels
．
Preset frequencies

81
．
Channel sync

1-way (TX→RX)
．
Frequency response

20 Hz - 18 KHz
．
S/N ratio

> 95 dB(A)
．
Dynamic range

> 100 dB(A)
．
T.H.D.

< 0.4% @ 1 KHz
．
Receiving antenna

Detachable at front-end, SMA female.
．
Modulation

GFSK
．
Audio sampling

equivalent to 96k/24bit
．
Latency

5ms
．
Audio Output Adjustment

Volume control (-12~+12 dB, step 3 dB)
．
Power supply

12V DC
．
Dimensions (mm)

73 × 138 × 36
．
Weight (g)

74
