WR-8200MIrDA

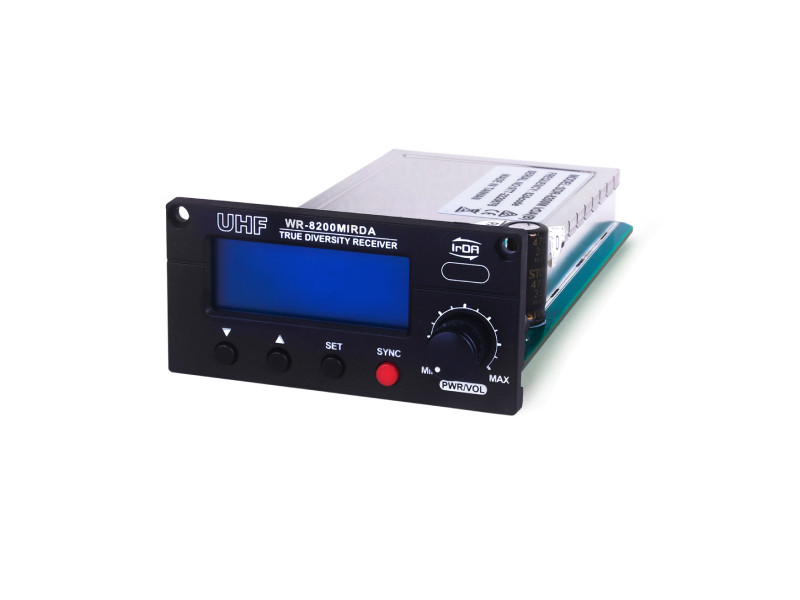

UHF 2-Way Sync True Diversity Receiver Module

contact us

FEATURES

．
UHF 2-Way Sync True Diversity Receiver Module

SPECIFICATIONS

．
Receiving mode

True diversity
．
Frequency range

UHF 500 - 960 MHz
．
Bandwidth

25 MHz
．
Preset frequencies

100
．
Channel sync

2-way (RX ⇔ TX)
．
Frequency response

50 Hz - 18 KHz
．
Peak deviation

± 40 KHz
．
Sensitivity

S/N > 80 dBm at 10 dBμV
．
S/N ratio

> 85 dB(A)
．
T.H.D.

< 0.5% @ 1 KHz
．
Receiving antenna

Built in
．
Modulation

FM
．
Squelch

Pilotone & Noise-cancelling dual-squelch circuit
．
Audio Output Adjustment

Volume knob for adjustment of output volume
．
Power supply

12V DC
．
Dimensions (mm)

74 × 138 × 36
．
Weight (g)

102
