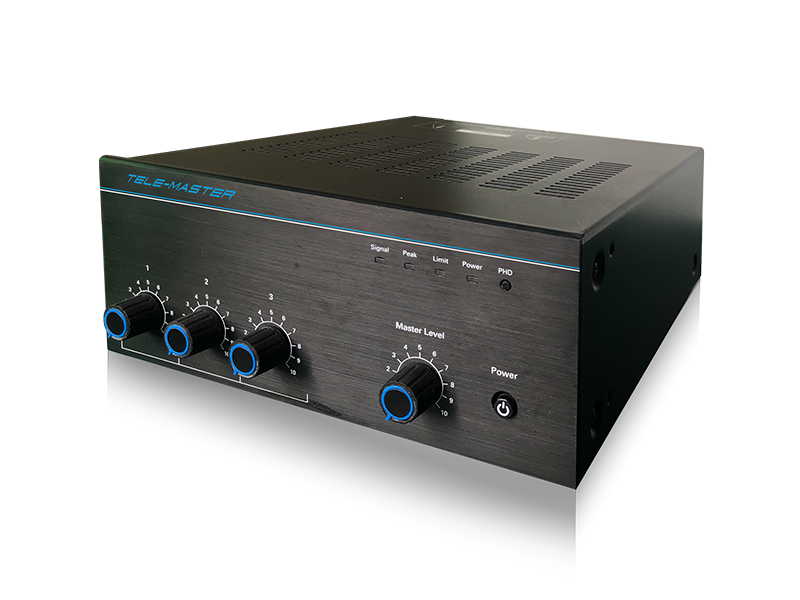

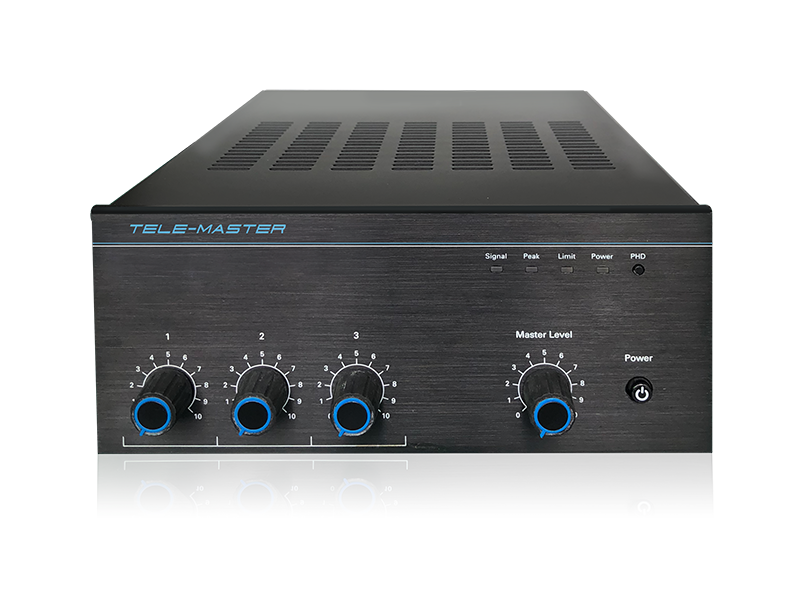

TPA-50T | Tele-Master

TPA-50T

contact us

FEATURES

．
50W into 25V/70.7V and 4Ω Loads
．

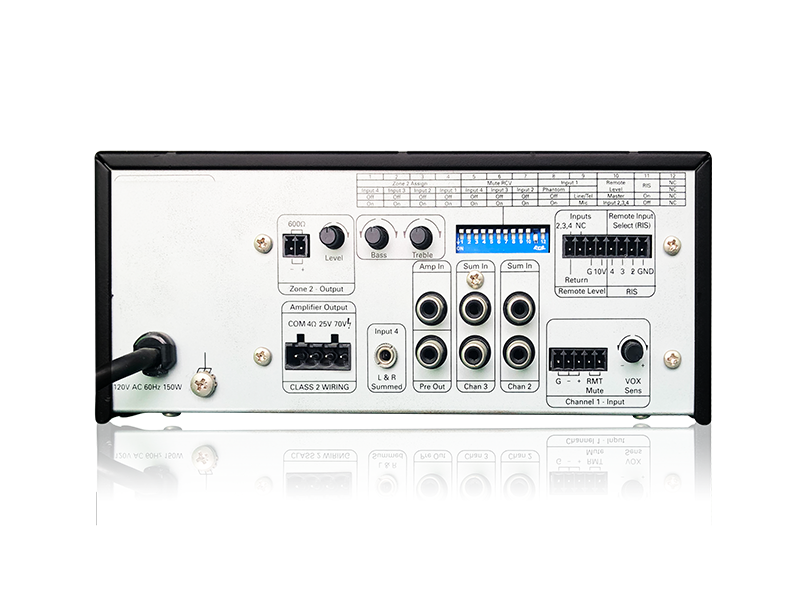

Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
．
Contact Closure Mute Terminals
．
Variable Mute Sensitivity Control for Input 1
．
Preamp In for External Processors
．
Line Output
．
Remote Input Select (RIS)
．
Remote Level Control
．
Input Assignable Zone 2 Output
．
Two Unbalanced, Summing Line Level Inputs
．
Balanced Mic/Line/Tel Input w/ Phantom Power
．
Automated Diagnostic System Test (Push Here Diagnostic®)

SPECIFICATIONS

．
Frequency Response

50Hz - 15kHz
．
Connector Type

4 Position Phoenix 3.5mm Pitch
．
Power Output

Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 50W RMS
．
Height

3.66" (93mm)
．
Width

8.27" (210mm)
．
Depth

10.87" (276mm)
．
Weight

10.5ib
．
Shipping Weight

12.4lb
．
Voltage Compatibility

110V - 120V
