CS-8030TX | Tele-Master

CS-8030TX

High Performance 8" Speaker

contact us

FEATURES

High power handling 8” in-ceiling speaker system
Trim-less magnetic grilles
Smooth-wide frequency response

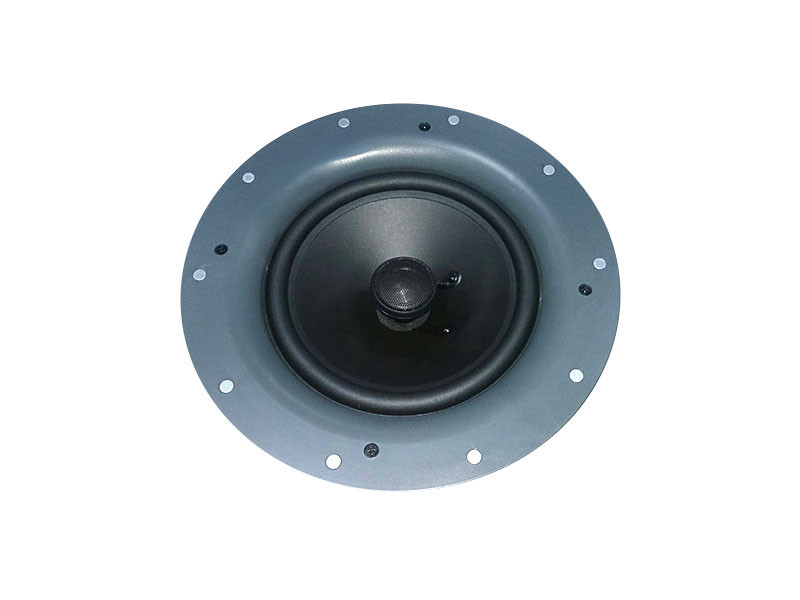

8 inch polypropylene woofer cone
Rubber woofer surround
30 oz Ferrite woofer magnet
1 inch aim-able silk dome tweeter
Neodymium tweeter magnet

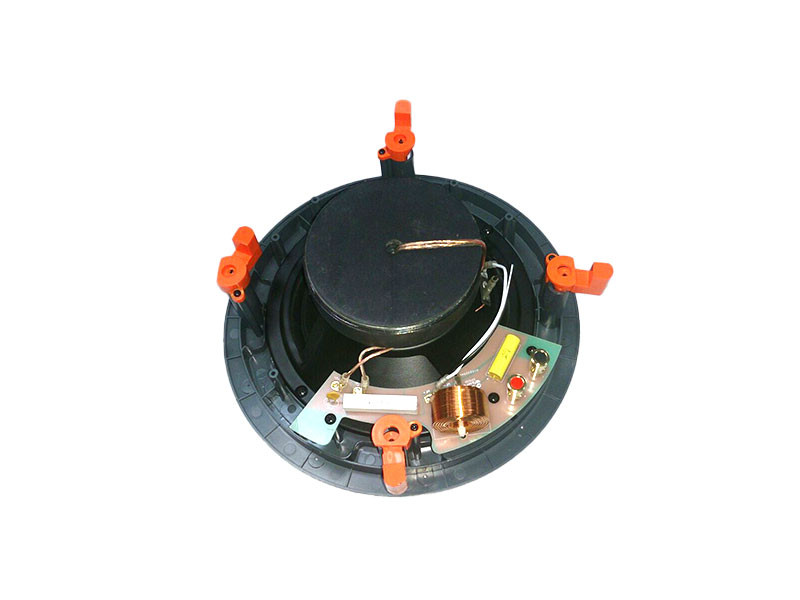

High quality crossover with air core inductor

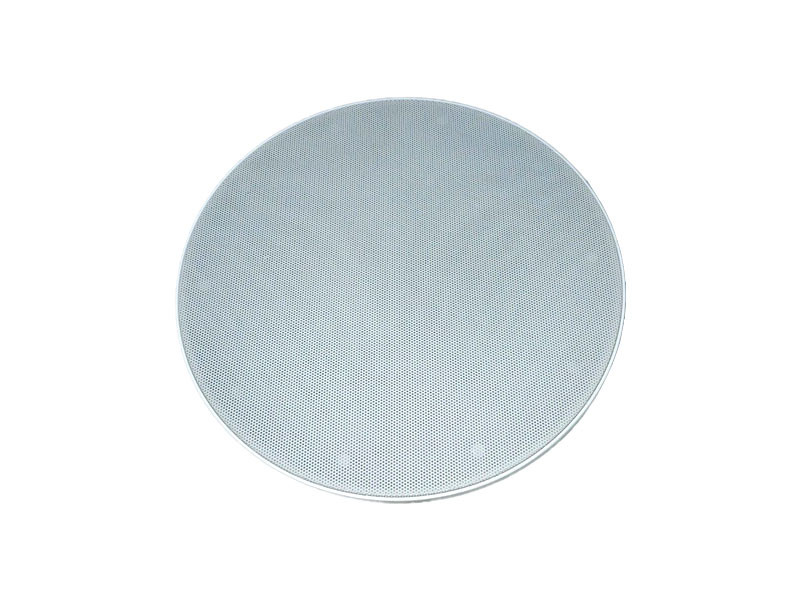

Pure white acoustically lined magnetic grille
4 heavy duty mounting clamps
Gold plated 12awg binding posts
Available with10, 20 or 30 watt 25/70 volt transformers
Paint-able to match any decor

SPECIFICATIONS

．
Diameter Woofer
8” (203.20mm) polypropylene
．
Diameter Tweeter
1” (25.4mm) silk dome aim-able
．
Power Handling
150 watts (peak)
．
Impedance
8 ohms (speaker) 5000 ohms @ 1 watt transformer
．
Frequency Response
35Hz - 20kHz (±10dB)
．
Dispersion
110 degrees
．
Sensitivity
92dB (1W 1M) Average
．
Transformers
Wattage 10/20/30 watts 25 /70 volts
．
Frequency response
40Hz – 17kHz (+/-5dB)
．
Insertion loss
1.0dB
．
Dimensions Overall
10.875” (277mm)
．
Shipping Weight
18.lbs (7.25kg) per pair
