CS-6520TX

High Performance 6.5" Speaker

contact us

FEATURES

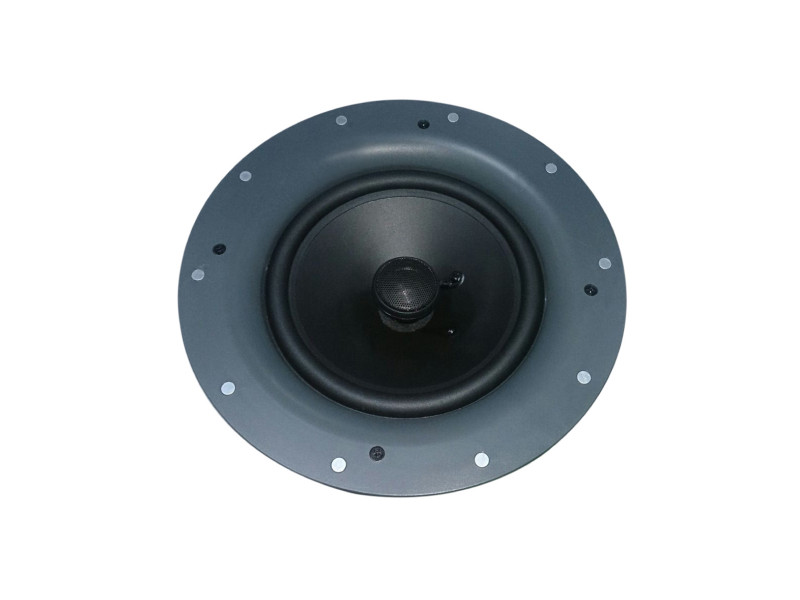

High power handling 6.5” in-ceiling speaker system
Magnetic trim-less grille
Smooth-wide frequency response
6.5 inch polypropylene woofer cone
Rubber woofer surround
20 oz Ferrite woofer magnet
1 inch aim-able silk dome tweeter
Neodymium tweeter magnet

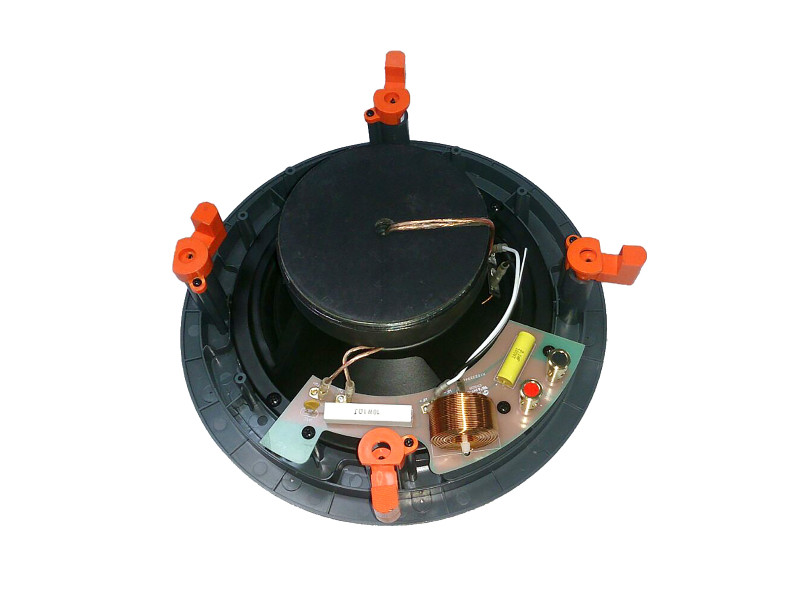

High quality crossover with air core inductor

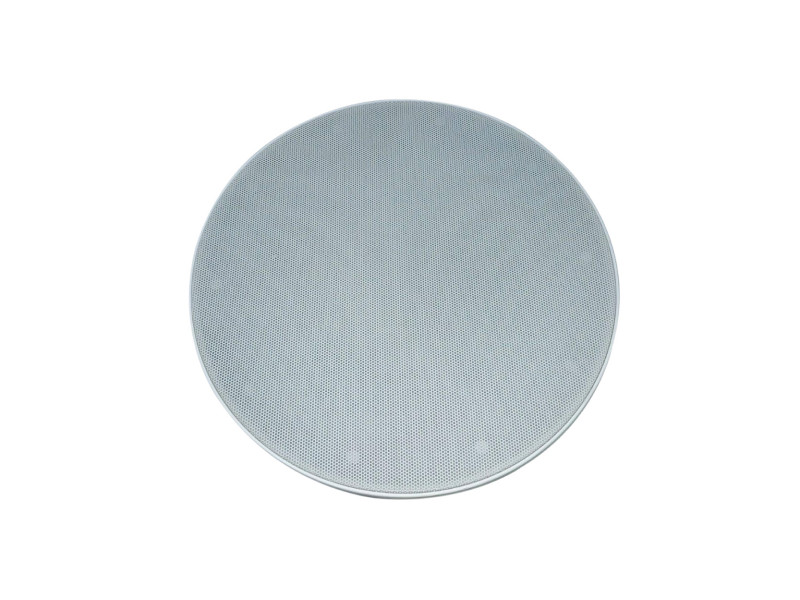

Pure white acoustically lined magnetic grille
4 heavy duty mounting clamps.
Gold plated 12awg binding posts
Available in three 25/70V transformer options 10 watt / 20 watt / 30 watt

SPECIFICATIONS

．
Diameter Woofer
6.5” (165.1mm) polypropylene
．
Diameter Tweeter
1” (25.4mm) silk dome aim-able
．
Power Handling
125 watts (peak)
．
Impedance
8 ohms (speaker) 5000 ohms @ 1 watt transformer
．
Frequency Response
40Hz - 20kHz (±10dB)
．
Dispersion
110 degrees
．
Sensitivity
92dB (1W 1M) Average
．
Transformers
Wattage 10/20/30 watts 25 /70 volts
．
Frequency response
40Hz – 17kHz (+/-5dB)
．
Insertion loss
1.0dB
．
Dimensions Overall
10.125” (250mm)
．
Shipping Weight
13lbs (5.9kg)
