CS-805TS | Tele-Master

CS-805TS

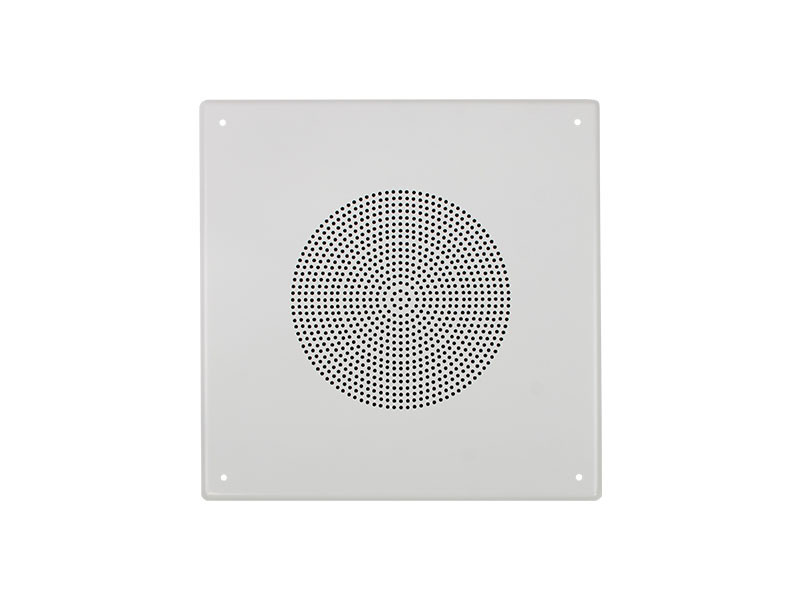

8" Steel Grille Commercial Speaker

contact us

FEATURES

8 inch pulp fiber full range dual woofer cone
5.4 oz ferrite woofer magnet
5 watt 25/70 volt transformer
Four wattage taps
16 gauge steel pure white enamel grille
4 universal white mounting screws

SPECIFICATIONS

．
Speaker Type
Dual cone
．
Cone Material
Pulp fiber
．
Frequency Response
50Hz - 15kHz (±4dB)
．
Power Handling
20 watts (peak)
．
Impedance
8 ohms (nominal)
．
Dispersion
96 degrees
．
Sensitivity
92dB (1W 1M) Average
．
Magnet type
Ferrite
．
Magnet weight
5.4 oz / 153g
．
Voice coil diameter
0.75” / 19mm
．
Flux density
11,600 gauss
．
Speaker depth
2.76” / 70mm
．
Transformer Primary voltage
25/70-volt
．
Transformer Primary taps
0.625 / 1.25 / 2.5 / 5 watts
．
Transformer Secondary tap
8 ohms
．
Transformer Frequency response
80Hz – 15 kHz (+/- 5dB)
．
Transformer Insertion Loss
0.5dB
