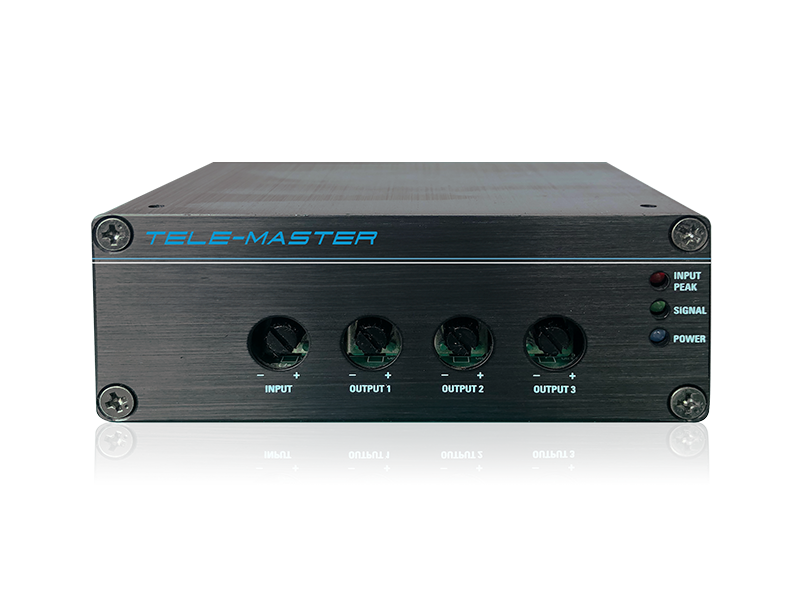

TPP-1X3M | Tele-Master

TPP-1X3M

contact us

FEATURES

．
One (1) Balanced Mic/Line Input with Switchable 24V Phantom Power
．
High Gain (50dB), Low Noise Mic Preamp
．
Summed Dual RCA Input
．
Three (3) Isolated Balanced Mic/Line Outputs
．
12dB/Octave Low Cut Filter @ 125Hz
．
Signal/Peak Indicator LED's
．
High Gain Output for Driving Long Balanced Lines
．

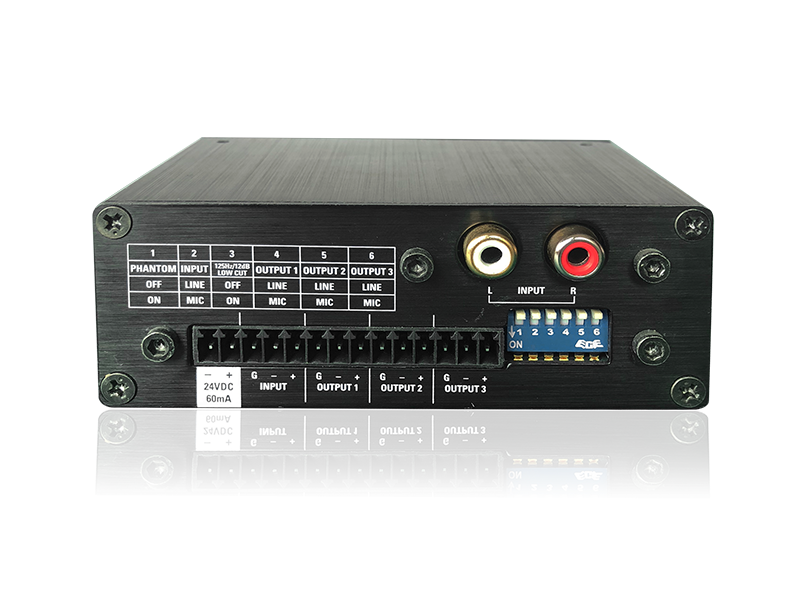

Removable Phoenix Style I/O Connectors
．
Separate Ground Connections
．
Energy Efficient
．
Power Supply Sold Separately

SPECIFICATIONS

．
Frequency Response

20Hz - 20kHz
．
Input Impedance

1.2KΩ Balanced, 600Ω Unbalanced
．
Input Low Cut Filter

125Hz/12dB Defeatable
．
Output Impedance

300Ω Balanced, 150Ω Unbalanced
．
Signal To Noise Ratio

90dB
．
24VDC Power Requirements

60mA
．
Height

1.5" (3.81 cm)
．
Width

4" (10.16 cm)
．
Depth

2.5" (6.35 cm)
．
Weight

6oz., .165kg
．
Voltage Compatibility

24V
