FEATURES

．
True VCA for Remote Volume Control of Mic or Line Sources
．
Two (2) Mic/Line Inputs
．

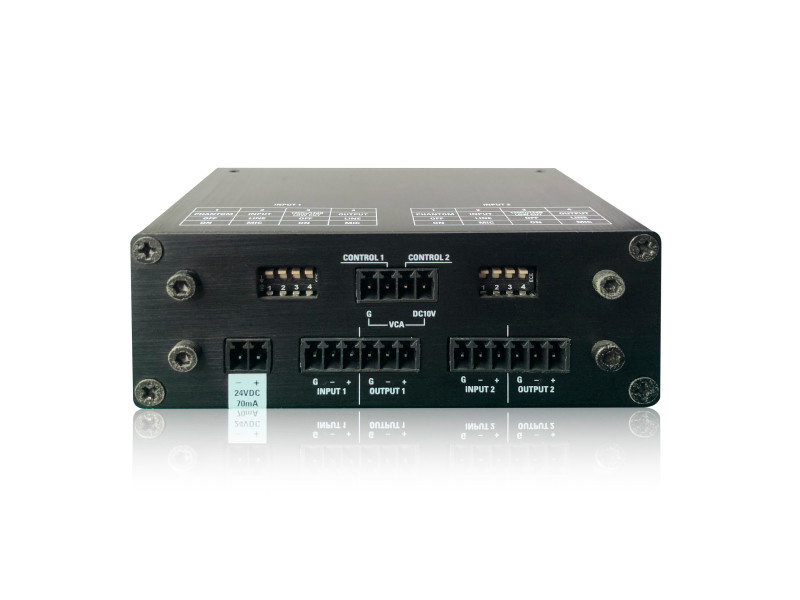

All I/O Via Phoenix Style Connectors
．
High Quality Microphone Preamp with Switchable 24V Phantom Power
．
12dB/Octave Low Cut Filter @ 125Hz
．

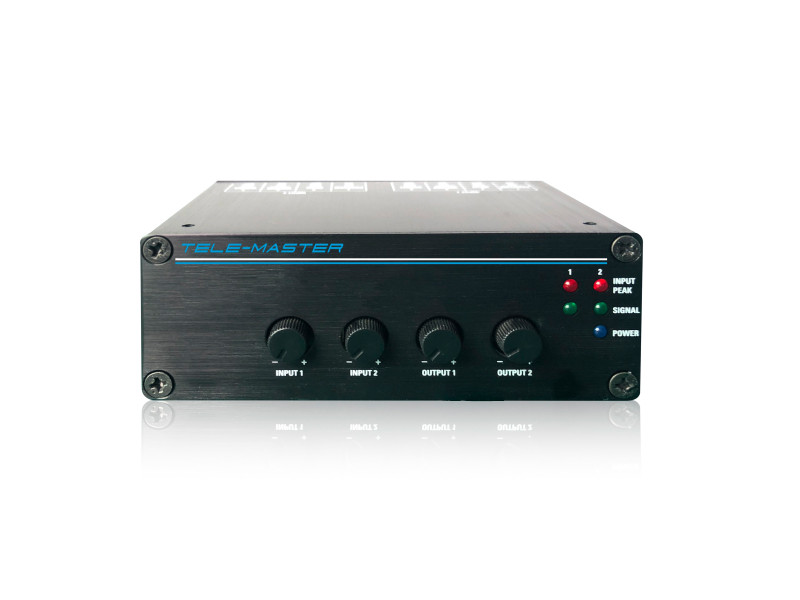

Input Signal & Peak LEDs
．
High Gain Output for Driving Long Balanced Lines
．
Separate Ground Connections
．
Security Covers Included for All Front Panel Controls
．
Energy Efficient
．
Power Supply Sold Separately

SPECIFICATIONS

．
Input Impedance

1.2KΩ Balanced, 600Ω Unbalanced
．
Phantom Power

24VDC Defeatable
．
Low Cut Filter

125Hz/12dB Defeatable
．
Line Input Level

1V (0dBV) Balanced 2V (+6dBV) Balanced Output
．
Mic Input Level

46dB Gain 10mV (-40dBV) Balanced
．
Output Impedance

300Ω Balanced, 150Ω Unbalanced
．
Line Output Level

1V (0dBV) In
．
Frequency Response

20Hz - 20kHz
．
Signal To Noise Ratio Line To Line

85dBV
．
Signal To Noise Ratio Line To Mic

55dBV
．
24VDC Power Requirements

70mA
．
Height

1.5" (3.81 cm)
．
Width

4" (10.16 cm)
．
Depth

2.5" (6.35 cm)
．
Weight

6oz., .165kg
．
Voltage Compatibility

24V
