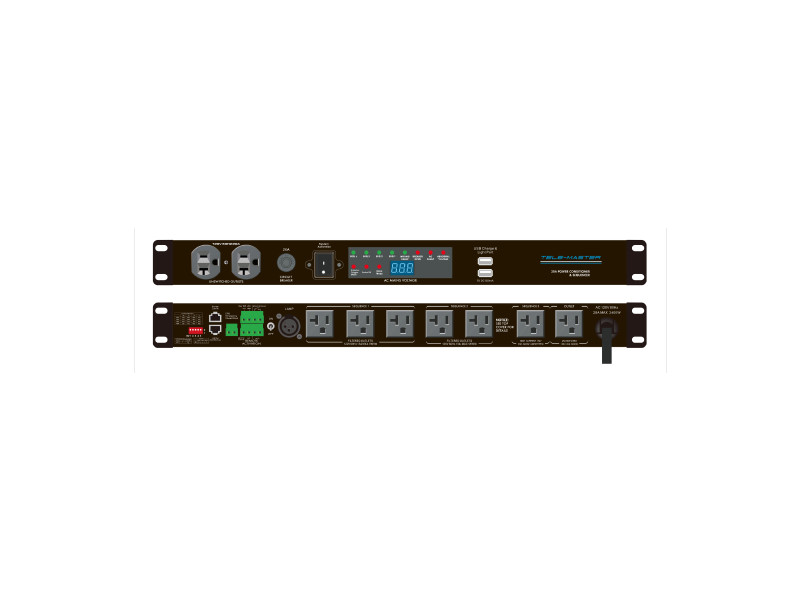

PWC-SQ420

contact us

FEATURES

．
9 Total 20A Outlets
．
6 Rear Panel Outlets Sequenced in 3 Stages
．
1 Rear Panel Unswitched Outlet
．
2 Front Panel Unswitched Outlets
．
Sequenced Output Trigger
．
Radio Frequency (RFI) and Electromagnetic Interference (EMI) Filters
．
Dual Clamping Spike & Surge Suppression, DCS Circuitry
．
Front Panel Digital AC Mains Voltmeter
．
Emergency Power Down (EPD)
．
Extreme Voltage Shutdown (EVS)
．
External Switch Sequence Trigger Activation, Momentary or Latching Switch
．
External DCV Sequence Trigger Activation 5-24VDC
．
Circuit Breaker Protection @ 20 Amps Indicated by "Breaker Open" Indicator
．
AC Fault, Wiring Fault, and Abnormal Voltage Indicators
．
Dual Front Panel USB Charge Ports for Charging USB Devices or Gooseneck Style Lamps
．
Rear Panel XLR Receptacle for the Optional AP-GNL Gooseneck Lamp
．
Front Panel Mains Power Switch Security Cover
．
AC Power Cord Retainer

SPECIFICATIONS

．
Load Rating

20A
．
Minimum Spike Clamping Voltage

460 VRMS @ 3000A
．
Maximum Spike Clamping Voltage

6000V
．
Power Consumption

12 Watts
．
Operating Voltage

102 - 132VAC
．
Energy Rating

2000 Joules
．
Spike Clamping Voltage @ 100A

1250Vp for 20μs
．
Maximum Surge Current

6500A
．
Temperature Range

5° to 35°C
．
Humidity Range

5% to 95% R.H.
．
Height

1.75" (44.45mm)
．
Width

19" (482.6mm)
．
Depth

8.5" (215.9mm)
．
Weight

10 lbs. (4.53kg)
