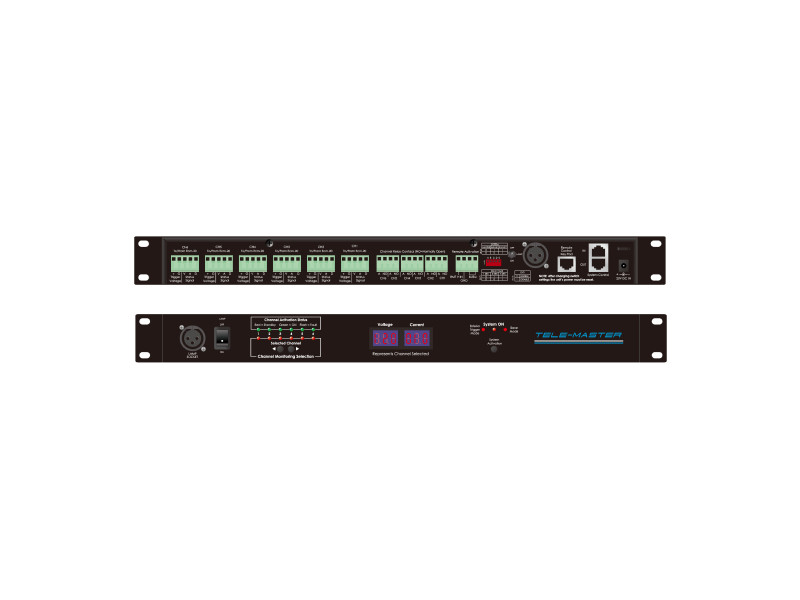

PWSQ-6M | Tele-Master

PWSQ-6M

contact us

FEATURES

．
Six Sequencer Timing Sections, 1, 3, or 6 Second Intervals
．
Six Independent ECM Connections
．
Six Independent Contact Closures
．
Front Panel Digital AC Mains Voltage and Current Meter
．
External Switch Sequence Trigger Activation
．
External DCV Sequence Trigger Activation 5-24VDC
．
Abnormal AC Line Voltage Indicator
．
Front & Rear XLR Connector for 12VDC Gooseneck LED Lamp (AP-GNL18)

SPECIFICATIONS

．
Sequencer Sections

6
．
Light

XLR Socket to Provide 12VDC for Optional 16" Gooseneck Lamp AP-GNL18
．
Sequence Timing

Unit Settings of 1, 3 or 6 Seconds
．
Power Supply

External Wide Rage 100V–240VAC, UL Approval
．
Power Consumption

.8 Watts
．
RoHS Compliant

Yes
．
LED Light Switch

Two Position On/Off
．
Activation Switch

Momentary
．
AC Mains Voltmeter

Three Digits Digital
．
Indicators

System On, External Trigger Mode, Slave Mode
．
Remote Activation Trigger

5-24VDC Continuous 10 mA, Switch Contacts, Euro/Phoenix Type Connector
．
Height

1.75" (44.45mm)
．
Width

19" (482.6mm)
．
Depth

10" (254mm)
