TPP-4X1M | Tele-Master

TPP-4X1M

contact us

DESCRIPTION

FEATURES

．
Four (4) Balanced Mic/Line Inputs
．
Four (4) Professional Grade Microphone Preamps with Switchable 24V Phantom Power
．
Up to 50dB Mic Gain Per Input
．
12dB/Octave Low Cut Filter @ 125Hz
．
Balanced Line Output
．
Input Peak & Signal Indicator LED's
．
High Gain Output for Driving Long Balanced Lines
．
Separate Ground Connections
．

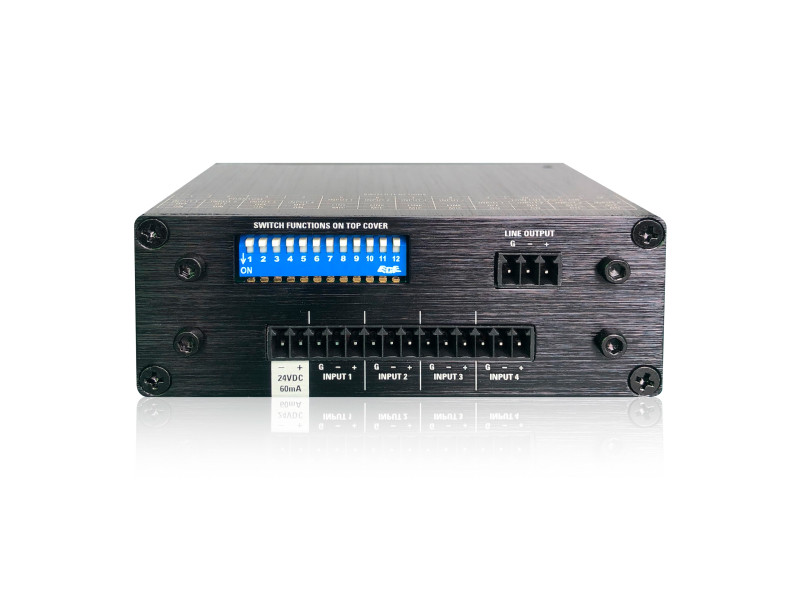

Removable Phoenix Style I/O Connectors
．

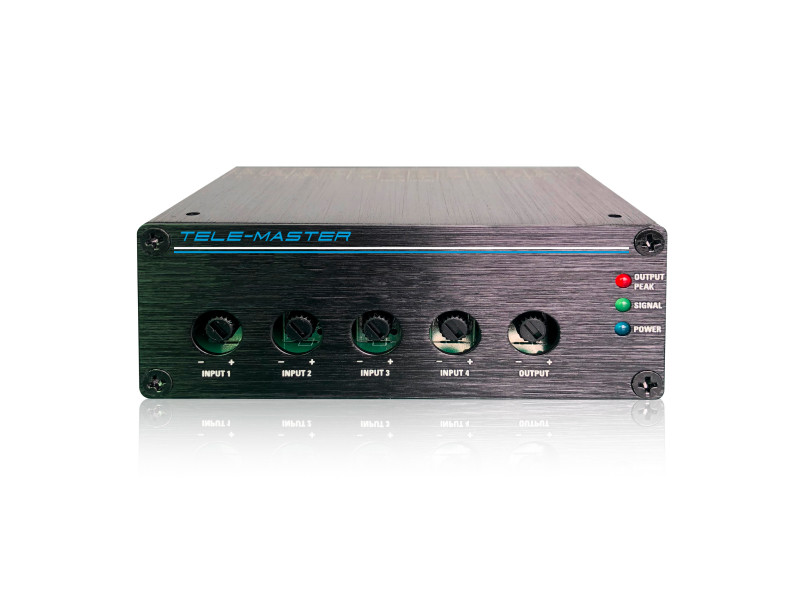

Security Covers Included for All Front Panel Controls
．
Power Supply Sold Separately
．
Energy Efficient

SPECIFICATIONS

．
Input Impedance

1.2KΩ Balanced, 600Ω Unbalanced
．
THD

.06% & 1kHz
．
Phantom Power

24VDC Defeatable
．
Low Cut Filter

125Hz/12dB Defeatable
．
Line Input Level

1V (0dBV) Balanced 2V (+6dBV) Balanced Output
．
Mic Input Level

46dB Gain 10mV (-40dBV) Balanced
．
Output Impedance

300Ω Balanced, 150Ω Unbalanced
．
Line Output Level

1V (0dBV) In
．
Frequency Response

20Hz - 20kHz (+/-1dB)
．
Signal To Noise Ratio Line To Line

85dBV
．
Signal To Noise Ratio Mic To Line

78dBV
．
24VDC Power Requirements

60mA
．
Height

1.5" (3.81 cm)
．
Width

4" (10.16 cm)
．
Depth

2.5" (6.35 cm)
．
Weight

6oz., .165kg
．
Voltage Compatibility

24V
